Pit Box

Windermere Cup Wembly Challenge Trophy Drinkwater B1's Lowne Little Otter
Jackson Austerity class Mears Challenge Trophy Stan Poyser Trophies Futuristic A1
Mystery hydro Circa 1930's Joy Bamford's C Class Steam Norfor Steam hydro



The Windermere Cup

The full name of this magnificent trophy is the 'Seagrave Memorial Challenge Trophy for Model Speedboat Racing'. It was donated anonymously to the MPBA in 1930 following the death of Sir Henry Seagrave at Lake Windermere. In 1936 the Innocent Brothers won it for the third time and as was the custom at the time, it became theirs to keep. The brothers donated it back to the MPBA in 1977 for annual competition to be awarded to the person breaking any waterscrew record by the largest margin. The first winner was G C Harris at 26mph and the most recent Norman Lara at 141mph, exactly 100mph faster than the Innocents in 1935.
OTW photo Jan 2016



Wembley Challenge Trophy

The third of the 1000yard trophies run at the Grand Regatta in conjunction with the Mears, but only for boats built since the last Grand that had not attained an award at any interclub regatta. Eventually this complex arrangement gave way to it being awarded as the 'quickstart', the time for 500yards being taken from the first pull of the starting cord, or flick of the prop for steamers. The first winner was Harold Wraith from Altrincham in 1935 and the last recorded on the trophy, Mrs J Lara in 1971. There were several subsequent winners as the 'quickstart' but these are not on the trophy. Again, with the decline of the 'Grand' this trophy fell into disuse, but it is hoped that it can be reallocated in 2016.   OTW photo Dec 2015



Mystery B1s:
These B1 airscrew boats both appeared on eBay in October yet no one could pin them down until the vendor informed us that the one on the left was built around 1999 and originally had a Cyclon motor and the white boat built a couple of years later a Profi, both top end engines in this class. The owner finally got the blue boat running successfully at Kingsbury in 2001 and the lessons learnt applied to the later boat. Trawling through Model Boats for the period mentioned unearthed a photo of Jonathan Drinkwater with the blue boat at the international meeting in July 2000 at Payre, France where he finished 4th. Jonathan's father Mike was almost entirely responsible for the growth and success of airscrew boats in this country and Jonathan continued to develop the concept with the boats seen above and an even more radical design he took to Kingsbury recently.
Thanks to the vendor for photos and details. Nov 2015



'Little Otter'

This boat appeared at Victoria around 1939, although it had been built by Fred Lowne of the Blackheath Club. The motor was some 10 years older and its very complex valve gear featured in 'Experimental Flash Steam'. The last known sighting of this boat was in 1945 at the Kent Model Engineering Exhibition. For a fuller description of this boat and motor Fred Lowne was the first of our Flash Steam Gallery subjects.

Thanks to Jonathan Barnard for this item and photos.  Oct 2015



Derby 'Austerity' boat

Following the second war there was a move to what was called the 'Austerity Class' utilising engines much smaller than the 15cc and 30cc motors that were the norm. Members of the Derby Club seemed to specialize in these smaller boat with several 10cc models as well as 5cc and this example with a 2.4cc Mills engine. These capacities were to become the C, D, and E classes. This model was built by Mr Jackson of the Derby Club and was a scaled down version of his 10cc White Ensign with its Westbury 'Ensign' motor.
Thanks to Jean-marc Morin for this item and photos  Sept 2015



Mears Challenge Trophy

Presented to the MPBA in 1934 and first raced for in 1935. A Grand Regatta trophy open to all boats, steam and IC as long as the hull, engine or both were built by the competitor. The second of the MPBA trophies run over 1000yds, one run only but two starts allowed. Run in conjunction were the Wembley and over the first 500 yards  the Crebbin for steam boats.   The first winner of the Mears was engine designer F. N. Sharp from the South London Club, and the last name on the trophy Jimmie Jones from Birkenhead in 1979/80. The Grand is now a shadow of its former self with no hydroplane involvement and the Mears a footnote in history but with a host of famous names engraved around its base.

Thanks to Peter Hill for this item OTW photo Aug 2015



A few of Stan Poyser's Mementoes
At one stage, every regatta and competition would award miniature trophies, medals and spoons and luckily these ones have been engraved so we know which event they were for.
From the left we have the Wembley Trophy 1951. The ED Trophy 1950. The Hispano Suiza 1952, the most prestigious event of the year, sadly defunct. Medals for Wembley Trial 1951? Miniature Speed Trophy 1953 and the Wembley again for 1954. This was just a small selection that Steve very kindly dug out for us and most competitors from that era and before would probably have dozens of similar items.
Thanks to Steve Poyser for these items. OTW photos  June 2015



Futuristic A1
Difficult to believe from its looks, but this little A1 hydro is nigh on 40 years old. It is pencil slim, extremely long with fin and wings and has a completely enclosed exhaust system. The Rossi 15 motor is 'turned round' by the simplest method that does not require a new crank follower as do most modern conversions. It does leave the intake seriously compromised by the tuned pipe. In pre bungee days, it proved almost impossible to get away from a launch, even with extended sponsons leading to its early retirement. The hull was re-united with its original motor, pipe and silencer in 2014.  Thanks to Stuart Robinson for this item May 2015



A 'Mystery' all round
This hydro is an unusual configuration with its traditional boat shaped bow allied to the almost 'slipper style' stern. The absence of any steering gear would indicate that it was intended for speed events, but equally there is no obvious tether point. The motor is even more difficult to pin down, but the thought is that it might be from something like a 'Winged Wheel' or other auxiliary power unit. Thanks to Norman Lara for passing on the photos.  April 2015



'Joy'
This lovely A class boat probably dates from the late 1930s given its similarity in lines to Ken Williams' Faro. The motor is a 25cc or 30cc version of the Sharp design usually identified as a Grayson, although  Gamages, Economic Electrics and Bonds marketed very similar engines throughout the 1930s.  No history can yet be found although with the tether bracket, name and Union Jack it seems likely that it would have been raced somewhere. The boat is in lovely condition and another wonderful discovery. Thanks to Steven Theobold for photos and details  March 2015



'Fireworks'

Small flash steamers used to be quite common at one stage, but modern examples are a rarity owing to the very restricted
'C Class' weight limit. Rob Bamford's 'Fireworks' is the only one we know of currently, but we are not sure if the class still exists. The most obvious feature of this boat is the extra long Bamford/Jutton style flame tube on the steam generator and the very short casing. Sadly, this boat is a yet to be finished project, although there is little more than detailed plumbing to be completed.
Thanks to Rob Bamford for the boat and Bob Kirtley for the photo.  Feb 2015

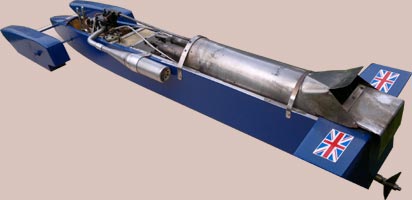

Steamer resurfaces

This A Class flash steam boat was the last built and run by the late Keith Norfor of the Victoria Club and last run in the 1990s. The power unit incorporated several elements of design from IC engines and also used some commercial components. The steam generator is more conventional with three venturi flame tubes.
          Thanks to Kevin Fleet for photos and information.   January 2015
